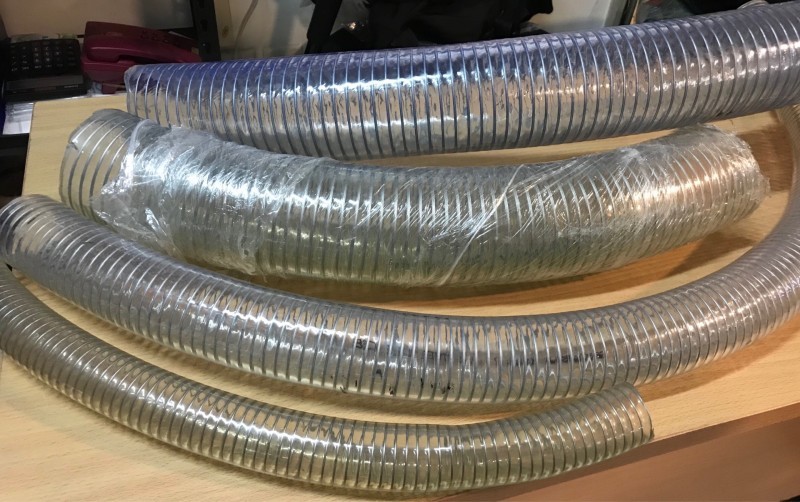

Spring Hose Transparant
| Nominal | Hose Dimension | Length | Working Pressure | Burst Pressure | Working Temperature |
| Inch | MM | M | MPa | MPa | C |
| 1/4 | 6x11 | 100 | 0.8 | 2.4 | 0-65 |
| 5/16 | 8x13.5 | ||||
| 3/8 | 9x15 | ||||
| 1/2 | 13x19 | 0.6 | 1.8 | ||
| 5/8 | 16x22 | ||||
| 3/4 | 19x26 | 50 | |||
| 1 | 25x33 | ||||
| 1-1/4 | 32x41 | 40 | 0.5 | 1.6 | |
| 1-1/2 | 38x48 | ||||
| 1-3/4 | 45x56 | 1.5 | |||
| 2 | 50x62 | 1.6 | |||
| 2-1/4 | 57x71 | 20 | 0.4 | 1.2 | |
| 2-1/2 | 63x80 | 1.2 | |||
| 3 | 75x92 | ||||
| 3-1/2 | 90x108 | 10 | |||
| 4 | 100x118 | ||||
| 5 | 127x146 | ||||
| 6 | 152x172 | ||||
| 8 | 200x222 | 0.1 | 0.3 |
